The paper "An expanded neurogenetic toolkit to decode olfaction in the African malaria mosquito Anopheles gambiae," authored by Diego Giraldo, Andrew M. Hammond, Jinling Wu, et al., was published in Cell Reports Methods on March 27, 2024, from institutions such as Johns Hopkins Malaria Research Institute, Johns Hopkins Bloomberg School of Public Health, and Department of Life Sciences, Imperial College London. In this research, Giraldo and colleagues developed a neurogenetic toolkit to decode the olfactory system of the African malaria mosquito, Anopheles gambiae. By creating cell-type-specific driver lines, the research team successfully encoded genetic access to specific olfactory sensory neuron populations and validated the application of these tools in decoding mosquito responses to human odors. The method integrates the driver-responder-marker (DRM) system using CRISPR-Cas9 technology, thereby enabling rapid identification of the expression patterns of target chemoreceptor genes by screening GFP+ olfactory sensory neurons.

1 Experimental Data Analysis

In this study, scientists successfully achieved cell-type-specific expression in olfactory sensory neurons of the African malaria mosquito, Anopheles gambiae, by applying CRISPR-Cas9 gene editing technology. This technological breakthrough allows the research team to precisely manipulate the activity of specific chemoreceptor genes, thereby exploring how mosquitoes recognize and respond to human odors through olfaction. Furthermore, the introduction of calcium imaging techniques enabled researchers to observe in real-time the activity changes in these olfactory sensory neurons upon exposure to human odor molecules, revealing the differential responses of various chemoreceptor genes to specific olfactory substances. These experimental results provide important biological insights into understanding the olfactory host-seeking mechanism of mosquitoes.

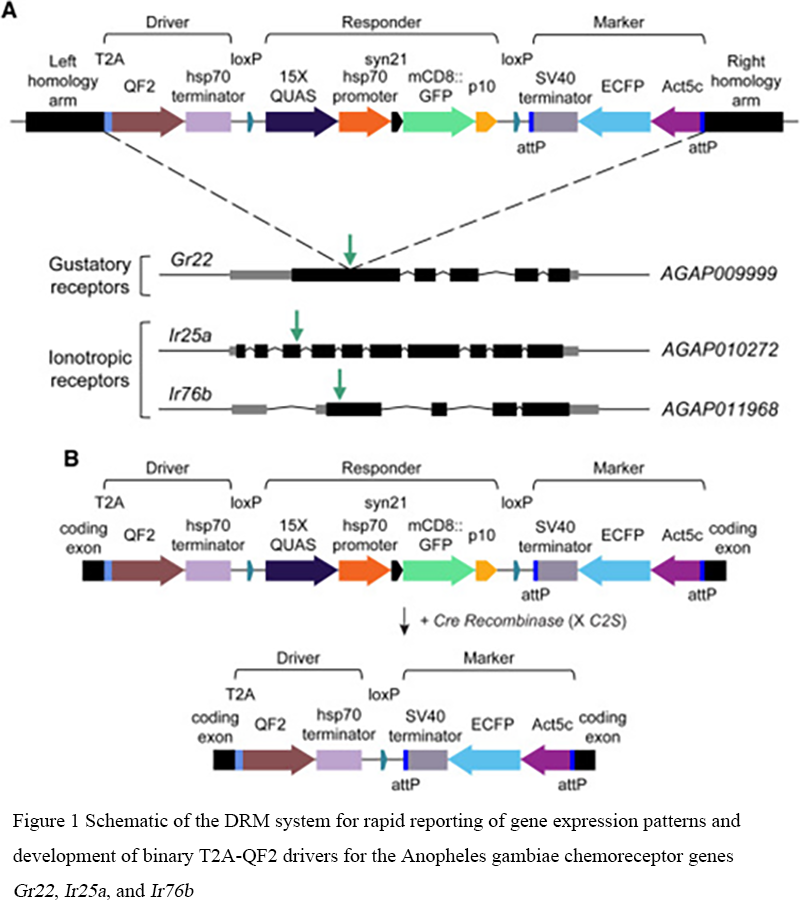

Figure 1 illustrates the driver-responder-marker (DRM) system constructed using CRISPR-Cas9 mediated homology-directed repair (HDR) technology, which is designed for rapid reporting of gene expression patterns and has developed a binary T2A-QF2 driver for the Anopheles gambiae chemoreceptor genes Gr22, Ir25a, and Ir76b. The diagram shows the three components of the DRM module: the T2A-QF2 driver, QUAS-mCD8::GFP responder, and Act5C-ECFP transgenic marker. These components are surrounded by homology arms to facilitate the correct insertion of the DRM module into the coding exons of Gr22, Ir25a, and Ir76b, generating the corresponding DRM lines. Part B explains that once the DRM lines are established, the QUAS-mCD8::GFP responder component can be removed via Cre-loxP mediated excision to produce standard T2A-QF2 driver lines suitable for binary use, resulting in the Gr22 ^QF2、Ir25a ^QF2 and Ir76b ^QF2 lines. This system provides an efficient tool for rapidly and precisely manipulating and identifying specific olfactory neurons.

Figure 2 displays the expression patterns of the chemoreceptor genes Gr22、Ir76b and Ir25a, modified through T2A-QF2 technology, in the olfactory organs of the African malaria mosquito Anopheles gambiae. Part A shows the labeling of the mosquito's head's primary olfactory appendages, with the right panel summarizing the expression patterns of QUAS-GCaMP6f activated by Gr22 ^QF2, Ir76b ^QF2 and Ir25a ^QF2 within these appendages. Part B reveals that Gr22+ olfactory sensory neurons are confined to the antennae in the Gr22 ^QF2 genotype. Part C indicates that Ir76b+ neurons are expressed solely in the antennae and the labial palps. Part D shows a broader expression of Ir25a+ neurons in the antennae, maxillary palps, and labial palps. The scale bar represents 30 mm, providing a reference for observation. These results reveal the distribution and response characteristics of specific olfactory neurons within the olfactory organs, which is of significant importance to the study of olfactory navigation in malaria mosquitoes.

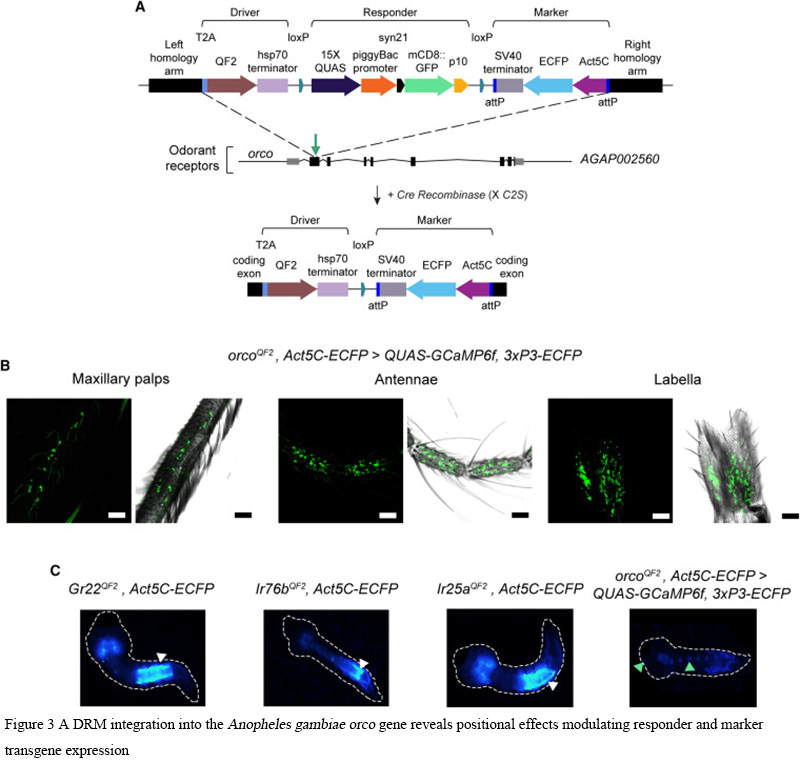

Figure 3 reveals the integration of the driver-responder-marker (DRM) system into the olfactory gene orco in the African malaria mosquito, Anopheles gambiae. Part A displays a diagram of the DRM system integrated into the orco gene using CRISPR-Cas9 mediated homology-directed repair (HDR) technology, and the construction of a binary-use orco^QF2 driver line through excision of the responder gene by Cre-loxP technology. Part B shows the expression of orco+ olfactory sensory neurons in the antennae, maxillary palps, and labial palps. Part C exhibits the heterologous expression of the Act5C-ECFP marker in different T2A-QF2 integration lines, highlighting the positional effects of specific gene loci on responder and marker transgene expression. It shows the expression of Act5C-ECFP marking T2A-QF2 driver integration in the midgut of larvae, and the expression of 3xP3-ECFP marking QUAS-GCaMP6f responder integration in the ventral nerve cord and optic lobes. These results not only show the locality dependence of gene expression but also emphasize the complexity of gene expression regulation that must be considered when implementing gene editing strategies in complex biological systems.

Figure 4 displays the response of Gr22+ olfactory sensory neurons on the antennae of Anopheles gambiae to carbon dioxide (CO₂). Part A shows the activity of Gr22+ neurons before and after exposure to 1% CO₂ stimulus, indicated by changes in GCaMP6f fluorescence. Under a 1% CO₂ environment, a marked increase in fluorescent response reveals the neurons' sensitivity to CO₂. Part B tracks the activity changes of Gr22+ neurons following stimulation with different concentrations of CO₂, with mean ± standard error of the mean (SEM) illustrating an increase in neuronal response intensity as CO₂ concentration rises. Part C quantifies the maximum amplitude of fluorescence change under a 1-second CO₂ pulse, with mean ± SEM again confirming the neurons' activity dependence on CO₂ concentration changes. Bilateral Wilcoxon signed-rank tests indicate that responses at higher CO₂ concentrations are significantly stronger than at baseline levels. These data clearly indicate that Gr22+ olfactory neurons can specifically respond to changes in CO₂ concentration, a finding crucial for understanding how mosquitoes utilize olfaction to locate hosts.

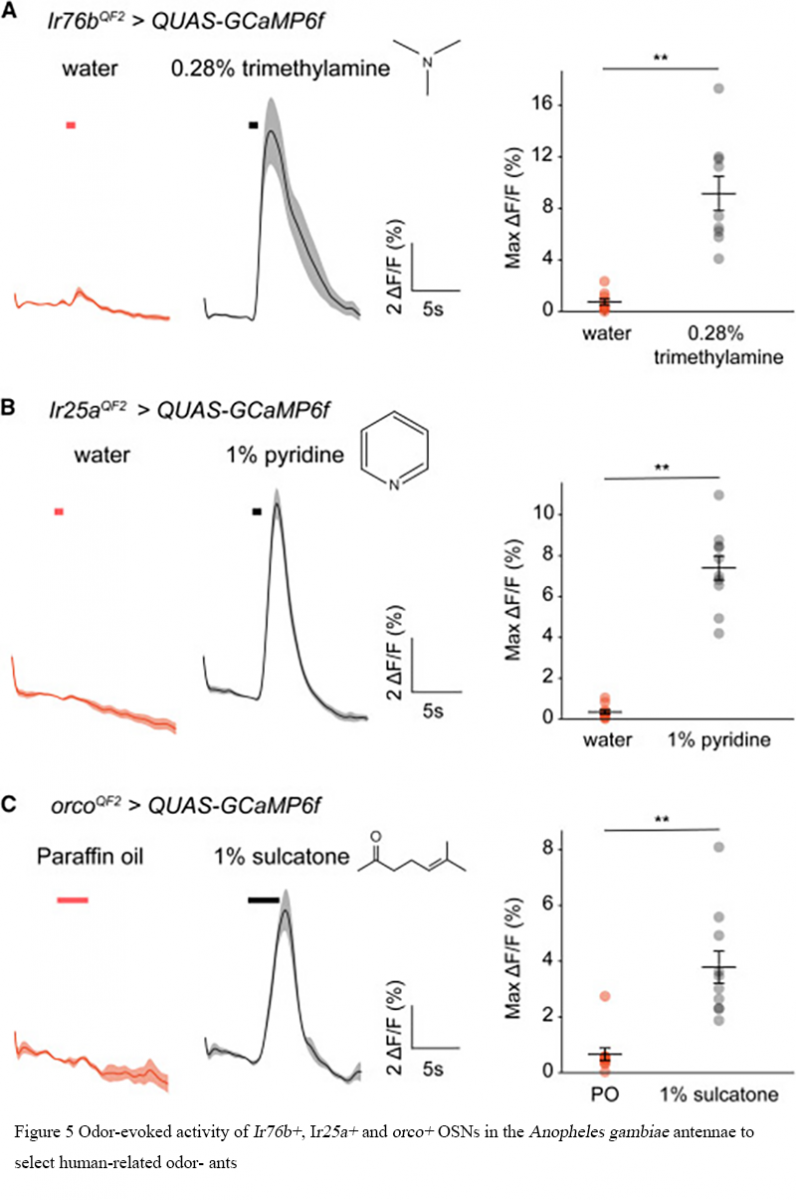

Figure 5 shows the response of Ir76b+、Ir25a+ and orco+ olfactory sensory neurons (OSNs) on the antennae of Anopheles gambiae to specific human-related odor stimuli. Part A presents the response of Ir76b+ neurons to 0.28% trimethylamine and its comparison with a water control; Part B displays the response of Ir25a+ neurons to 1% pyridine and its comparison with a water control; Part C shows the response of orco+ neurons to 1% hexanal and its comparison with a paraffin oil control. On the left side of each figure are the GCaMP6f activity traces following stimulation, and on the right side is the quantification of the maximum ΔF/F values derived from these traces. Orange and black bars indicate the start and duration of the stimulus, respectively. All charts are plotted with mean ± standard error, and bilateral Wilcoxon signed-rank tests show p-values less than 0.01, indicating that the responses after stimulation are significantly higher than controls. This indicates that these OSNs can specifically respond to odor molecules related to humans, providing important insights into how mosquitoes use olfaction to identify humans.

2 Analysis of Research Findings

By delving into the olfactory system of Anopheles gambiae, this study unraveled the complex mechanisms behind this malaria mosquito's response to human odors, demonstrating how scientists can precisely insert the driver-responder-marker (DRM) system into the mosquito genome using CRISPR-Cas9 technology. This enables precise manipulation and tracking of specific chemoreceptor genes in olfactory sensory neurons. Such innovative gene editing methods not only enhance the precision of research but also pave new avenues for experimental design and olfactory studies. Utilizing calcium imaging techniques, the research team further validated the efficiency and accuracy of the created gene expression lines in capturing the mosquito's response to human odor molecules. The combined use of these techniques allows scientists to observe and analyze in real-time the activity of olfactory sensory neurons upon encountering specific odorants, deepening our understanding of how mosquitoes identify human hosts through their olfactory system. These findings not only deepen our knowledge of mosquito olfactory behavior but also provide a valuable scientific basis for developing targeted mosquito control strategies and preventing malaria transmission. By revealing the subtle differences in the response of specific olfactory sensory neurons to human odors, this study offers important clues for future exploration of more effective mosquito repellents and attractants.

3 Evaluation of the Research

This study represents a significant breakthrough in the field of malaria mosquito olfactory mechanisms, offering an in-depth analysis of the mosquito's olfactory coding process through the introduction of an advanced neurogenetic toolkit. Utilizing CRISPR-Cas9 gene editing and calcium imaging techniques, scientists were not only able to track the mosquito's precise responses to human odors but also provided new perspectives and a scientific basis for developing effective mosquito control strategies. Additionally, the research findings enhance our understanding of mosquito behavioral habits, offering key insights for innovation in malaria prevention and control strategies. While this study is technically innovative, its complexity demands a deep understanding of genetics and molecular biology, which may limit its application outside specialized fields. However, its contribution to advancing mosquito research and the public health sector cannot be underestimated, providing valuable data and methods for future research and malaria prevention practices.

4 Conclusion

Through the research of Giraldo and colleagues, we now have a deeper understanding of the workings of the Anopheles gambiae olfactory system, especially in how they respond to human odors. Utilizing a combination of CRISPR-Cas9 gene editing technology and calcium imaging techniques, the study not only successfully tracked the neurophysiological response of mosquitoes to specific odor molecules but also revealed specific response patterns of olfactory sensory neurons. This work provides us with powerful tools to study mosquito olfactory behavior more precisely, laying a solid foundation for developing new mosquito repellent strategies and malaria prevention measures. These findings are not only scientifically groundbreaking but also have significant implications for public health practice, offering new strategies and hope for future malaria control and elimination. In summary, the research by Giraldo and others greatly enriches our understanding of the olfactory mechanisms of malaria mosquitoes and opens up new avenues for formulating more effective mosquito management and malaria control strategies.

5 Access the Full Text

Giraldo, Diego et al. An expanded neurogenetic toolkit to decode olfaction in the African malaria mosquito Anopheles gambiae Cell Reports Methods, Volume 4, Issue 2, 100714. https://doi.org/10.1016/j.crmeth.2024.100714
