Background

Mosquitoes are vectors of aborvirals (Dupont-Rouzeyrol, 2012; Huang et al., 2014; Ghimire and Dhakal, 2015; Polwiang, 2015; Kindhauser et al., 2016) and malaria (Beck-Johnson et al., 2013; Kumar et al., 2013) and are a threat to public health. The first line management tool for mosquitoes is synthetic insecticides such as organophosphate, carbamate and pyrethroid insecticides (Tabti and Abdellaoui-Hassaïne, 2013; Aïssaoui and Boudjelida, 2014; Hamaidia and Soltani, 2014).

Synthetic insecticides are often applied indoor on surfaces or outdoor on water bodies for the control of both adult (Deletre et al., 2013) and larval stages (Pravin et al., 2015) of mosquitoes respectively. However, the insecticides are not only costly but have several human (Cartilla and De la Cruz, 2012) as well as environmental concerns (Haouari-Abderrahim and Rehimi, 2014). These challenges have led to intense search and evaluation of ecologically safe and potentially effective control alternatives.

Plant extracts have demonstrated ecological safety in that the extracted compounds are biodegradable, environmentally friendly (Regnault-Roger et al., 2012), and are of low mammalian toxicity (Isman, 2000). In addition, the novel compounds are target specific. The compounds achieve specificity by acting on selective biochemical sites in insects such as chitin synthesis inhibitors, or juvenile hormone analogues and ecdysone agonists, which affect the hormonal regulation of different processes (Berghiche et al., 2008; Suman et al., 2013).

This has seen an intense extraction and screening of plant compounds against haematophagous disease vectors such as mosquitoes (Shaalam et al., 2005; Gleiser and Zygadlo, 2007). One of such plants is Phytolacca dodecandra (L. Herit) also known as Endod. Water and methanol extracts of Endod has been screened against immature of Culex quinquefasciatus (Nurie et al., 2012) and Anopheles gambiae (Diptera: Culicidae) (Yugi et al., 2015a; 2015b; 2016) and found effective. However, the length of time the extracts last (residual effect) or remains effective to provide protection on any given medium is yet to be demonstrated.

Such information on duration (residual effect) of the extract in or on a medium is important as it will also inform on the periodicity of application. This is crucial for vector control, since it informs on the minimum interval between applications to maintain the sensitivity of the insecticide. According to WHO (1997; 2006), deltamethrin is recommended for indoor residual spray (IRS) at 20-25 mg a.i./m² for malaria vector control and its residual efficacy is estimated to be 3-6 months. Other insecticides have relatively shorter residual effect (pyrethroids: 4-6 months; organophosphates and carbamates: 2-6 months) (WHO, 2006).

For Endod, this information is now available courtesy of the present study and will inform on frequency of application, cost and effect on the environment. The present study seeks to inform on the residual effect (duration of effectiveness) of crude water and ethanol extract of Endod in water in the laboratory.

1 Results

It was observed in general that extracts of Endod remained effective for three days killing more than 80% of exposed third larvae instars (L3s) of An. gambiae. Effectiveness of the solutions reduced rapidly after day 4. In particular it was found that concentrations of 10mg and higher for freshly prepared (Figure 1), 20 mg/ml and higher for day two old (Figure 2) and 40 mgs for day three old (Figure 3) solutions of ethanol extracts of Endod leaves and mature green fruits of Endod killed more than 80% of the exposed L3s respectively. Preparations of deltamethrin killed an equal number of exposed L3s while preparations of Neem leaf extracts were lower.

For four (Figure 4) and five (Figure 5) days old solutions, extracts of mature green fruits and leaves of Endod killed less than the WHO >80% mortality threshold and were thus adjudged ineffective as insecticides. All preparations of deltamethrin of the same age however, killed all exposed larvae. Duncan’s Multiple Range test and one way analysis of variance (ANOVA) found mortality of the exposed larvae due to all concentrations of freshly and one, two, three, four and five day old solutions significantly different at p < 0.05 (Table 1).

2 Discussion

Ethanol and water extracts of Endod were found effective against larvae of An. gambiae mosquitoes. The effectiveness was dose dependent and for only three days (WHO, 2005). It was also observed that activity of the treatments rapidly reduced with extension of exposure period from day four onwards, a trend similar to one observed earlier (Amal et al., 2013; Abdalla and Amal, 2015).

It was observed that fruit extracts generally showed better results than leaf extracts of Endod and that the effectiveness of the extracts progressively decreased as the residual durations increased. These findings were similar to that of Abdalla and Amal (2015), that tested water, ethanol and petroleum ether extracts of leaves and fruits of Citrullus colocynthis against larvae of Anopheles arabiensis Patton. They also confirmed the fact that insecticidal activities of plant extracts depended on plant parts extracted (Mullal et al., 2008) and reduced with time.

Though the present study did not test residual effectiveness of active phytochemicals of Endod, the fact that the crude extracts were active for only three days could be concluded to be similar with findings by Molgaard et al., (2000) and Misganaw et al., (2012). These researchers observed that saponin, the active phytochemical in Endod (Phytolacca dodecandra) was only stable for 2 days and thereafter biodegraded rapidly. These findings are also similar to other findings that found degradation of natural products to be of shorter period (Schmutterer, 1990) than formulated synthetic chemicals. This explains the reason as to why plant extracts are less likely to persists, pollute and inflict harm to life in water as opposed to conventional synthetic pesticides (Amer and Melhorn, 2006).

The present study concludes that ethanol extracts of Endod are effective against An. gambiae larvae, but that the residual period is three days. It also notes that the fact that the extracts degrades quickly indicates that they are not only life-saving but are unlikely to persists, pollute and inflict harm to the environment.

3 Materials and methods

3.1 Study area, experimental mosquitoes and study design

Mosquitoes larvae used for the experiments were of An. gambiae raised at the insectary of the Entomological laboratory at the Centre for Global Health Research/Kenya Medical Research Institute (CGHR/KEMRI). The mosquitoes were cultured following standard procedures (Parekh et al., 2005; Das et al., 2007) and conditions describe in Yugi et al. (2014). A completely randomized informal ‘after-only with control’ experimental research design (Kothari, 2004) was used to investigate the lethal effect of crude ethanol extracts of Endod on the exposed An. gambiae mosquito larvae.

3.2 Deltamethrin and plant materials, extraction and preparation

Deltamethrin was obtained in the form of synthetic KOTab 1-2-3^® tablet, weighing 1.6 g and containing 0.4 g deltamethrin [pyrethroid (250 g/kg)]. Leaves and mature green fruits of Endod and leaves of Neem, Azadirachta indica used to obtain plant extracts were sourced identified and vouchers deposited as described (Yugi et al., 2015). In all cases 80 mgs of ethanol and water extracts obtained from the plant parts as well as deltamethrin were aliquoted, wrapped in pieces of aluminium foil and refrigerated at 4^°C.

3.3 Residual bioassay

Eighty milligrams of stocks crude extracts of Endod derived from mature green fruits and leaves were dissolved in 100 mls of harvested rain water and the stocks solution left to stand. This was repeated for six days with each day a solution being made and left to stand. All the solutions were then serially diluted to different concentrations of 80, 40, 20, 10, 5 and 2.5 mg/100 ml and added into a set of six plastic containers measuring 6 cm top × 5.7 cm bottom × 3.5 cm height. Each set contained a solution of a particular concentration. Third larval instars (L3s) were picked from the rearing trays using a dropper and exposed in groups of twenty to the prepared solutions to test on potency. Two assumptions were made on the preparation. First was that if a solution prepared six days earlier could kill after that long then it had the ability to remain potent for a period (residual period) similar to the same number of days it was left to stand. Second was that the number of days a solution was left to stand represent the duration such a solution would have taken on applied surface or media. The larvae were left exposed for 24 h, after which they were transferred to distilled water for another 24 h, to check for signs of recovery.

Larvicidal activities were tested in accordance with the WHO procedure (WHO, 1997). Daily records of larval mortalities were taken until the end of the study period and for every set up, moribund and dead larvae were collected and disposed off in a septic tank. The set ups were replicated five times

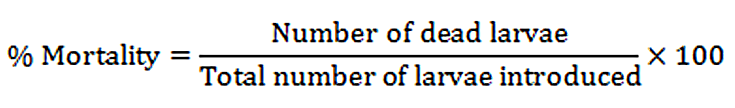

Larvae mortality rate were registered after 48 hours and mortality calculated for each concentration using the formula;

Standard WHO procedures were used to assess effectiveness of the extracts as larvicide at a mortality rate of > 80% (WHO, 2005).

3.4 Data analysis

Data obtained from the bioassays was entered in excel spreadsheets for ease of handling. The data was subjected to statistical analysis based on the applied design with relationship between the residual effects of Endod extracts with respect to parts of Endod and solvent used being determined using descriptive statistics. The means were compared using Duncan’s Multiple Range test and one way analysis of variance (ANOVA) to determine the level of significance of larvae mortality with respect to residual period of exposure. All statistical analysis was performed using SAS statistical package version 20.

Authors’ contributions

YJO conceived the idea, extracted phytochemicals from the plants, sourced for wild An. gambiae mosquitoes and cultured the mosquitoes, conducted the experiments, wrote the manuscript and sourced for funds. YJO, ADC and OHA designed the experiments, read and corrected the manuscript.

Competing interest

The authors declare that they have no competing interest.

Acknowledgements

We thank Richard Amito, Charles Owaga, Patience Akoth and Trevor Omondi for processing and culturing the experimental mosquitoes, Centre for Global Health Research/Kenya Medical Research Institute (CGHR/KEMRI) for laboratory space, mosquitoes and equipments for conducting the experiments and National Commission for Science Technology and Innovation (NACOSTI) for funding the project (Grant contract # NCST/5/003/3^rd Call PhD/056 to YJO).

Reference

Abdalla A.S., and Amal E.E., 2015, Preliminary phytochemical screening and activities of Citrullus colocynthis (L.), Schrad as mosquito larvicides, World Journal of Pharmaceutical Research, 4(1): 188-203

Aïssaoui L., and Boudjelida H., 2014, Larvicidal activity and influence of Bacillus thuringiensis (Vectobac G), on longevity and fecundity of mosquito species, European journal of experimental biology, 4(1): 104-109

Amal E.E., Abdalla A.S., and Zuhair A.A., 2013, Larvicidal properties of two asclepiadaceous plant species against the mosquito Anopheles arabiensis Patton (Diptera: Culicidae), Journal of the Saudi Society of Agricultural Sciences, 12: 59-66

https://doi.org/10.1016/j.jssas.2012.06.004

Amer A., and Melhorn H., 2006, Larvicidal effects of various essential oils against Aedes, Anopheles and Culex larvae (Diptera: Culicidae), Journal of Parasitological Research, 99: 466-472

https://doi.org/10.1007/s00436-006-0182-3
PMid:16642386

Beck-Johnson L.M., Nelson W.A., Paaijmans K.P., Read A.F., Thomas M.B., and Bjørnstad O.N., 2013, The Effect of Temperature on Anopheles Mosquito Population Dynamics and the Potential for Malaria Transmission, PLoS ONE, 8(11): e79276

https://doi.org/10.1371/journal.pone.0079276
PMid:24244467 PMCid:PMC3828393

Berghiche H., Houamria M., Van De Velde S., Soltani N., and Smagghe G., 2008, Effect of two insect growth regulators on the ecdysteroid contents in eggs of the mealworm, Belgian Journal of Zoology, 138: 140-145

Cartilla P., and De la Cruz J., 2012, Termiticidal Potential of Stachytarpheta jamaicensis (L.), Vahl,1: 1-5

Das N.G., Goswami D., and Rabha B., 2007, Preliminary evaluation of mosquito larvicidal efficacy of plant extracts,Journal of Vector Borne Diseases, 44: 145-148

Deletre E., Martin T., Campagne P., Bourguet D., Cadin A., Menut C., Bonafos R., and Chandre F., 2013, Repellent, Irritant and Toxic Effects of 20 Plant Extracts on Adults of the Malaria Vector Anopheles gambiae Mosquito, PLoS ONE, 8(12): e82103

https://doi.org/10.1371/journal.pone.0082103
PMid:24376515 PMCid:PMC3871167

Dupont-Rouzeyrol M., 2012, Chikungunya Virus and the Mosquito Vector Aedesaegyptiin New Caledonia (South Pacific Region), Vector-Borne and Zoonotic Diseases, 12(12): 1036-1041

https://doi.org/10.1089/vbz.2011.0937
PMid:23167500

Ghimire S., and Dhakal S., 2015, Japanese encephalitis: Challenges and intervention opportunities in Nepal, Veterinary World, 8(1): 61-65

https://doi.org/10.1089/vbz.2011.0937
PMid: 23167500

Gleiser R.M., and Zygadlo J.A., 2007, “Insecticidal properties of essential oils from Lippiaturbinataand Lippiapolystachya (Verbenaceae) against Culex quinquefasciatus (Diptera: Culicidae),” Parasitology Research, 101(5): 1349-1354

https://doi.org/10.1007/s00436-007-0647-z
PMid: 17616850

Hamaidia K., and Soltani N., 2014, Laboratory Evaluation of a Biorational Insecticide, Kinoprene, against Culexpipiens Larvae: Effects on Growth and Development, Annual Review & Research in Biology, 4(14):2263-2273

https://doi.org/10.9734/ARRB/2014/9729

Haouari-Abderrahim J., and Rehimi N., 2014, Biological and reproduction activities of mosquito larvae of Culiseta morsitans (Theobald) after Treatment by Ecdysone Agonist Methoxyfenozide, Annual Review & Research in Biology, 4(24): 4152-4165

https://doi.org/10.9734/ARRB/2014/11366

Huang Y-J.S., Higgs S., Horne K.M., 2014, Vanlandingham DL. Flavivirus-Mosquito Interactions, Viruses.6: 4703-4730

https://doi.org/10.3390/v6114703

PMid:25421894 PMCid:PMC4246245

Isman M.B., 2000, Plant essential oils for pest and disease management, Crop Protection, 19: 603-608

https://doi.org/10.1016/S0261-2194(00)00079-X

Kindhauser M.K., Allen T., Frank V., Santhana R.S., and Dye C., 2016, Zika: the origin and spread of a mosquito-borne virus, Bulletin of the World Health Organization, 2016

https://doi.org/10.2471/blt.16.171082

Kothari C.R., 2004, Research design: research methodology, methods and techniques, 2^nd edition, New Age International Publishers, New Delhi, India

Kumar A.N., Murugan K., Shobana K., and Abirami D., 2013, Isolation of Bacillus sphaericus screening larvicidal, fecundity and longevity effects on malaria vector Anopheles stephensi, Scientific Research and Essays-Academic Journals, 8(11): 425-431

Misganaw N., Moges S., Tadele M., Tesera M., Temesgen T., and Raja N., 2012, Evaluation of multi potential bioactive Endod, Phytolacca dodecandra (L’ Herit) berries extracts against immature filarial vector Culex quinquefasciatus Say (Diptera: Culicidae),Research Journal of Environmental and Earth Sciences, 4(7): 697-703

Molgaard P., Chihaka A., Lemmich E., Furu P., Windberg C., Ingerslev F., and Halling-Sorensen B., 2000, Biodegradability of the molluscicidal saponin of Phytolacca dodecandra, Regulatory and Toxicological Pharmacology, 32: 248-255

https://doi.org/10.1006/rtph.2000.1390
PMid:11162718

Mullal K., Jebanenesan A., and Pushpanathan T., 2008, Mosquitocidal and repellent activity of the leaf extract of Citrullus vulgaris (Cucurbitaceae) against the malarial vector, Anopheles stephensi Liston (Diptera: Culicidae), European Review for Medical and Pharmacological Sciences, 12: 1-7

Nurie M., Shiferaw M., Muche T., Mamaye T., Tigab T., and Nagappan R., 2012, Evaluation of Multi Potential Bioactive Endod, Phytolacca dodecandra (L’ Herit) Berries Extracts Against Immature Filarial Vector Culex quinquefasciatus Say (Diptera: Culicidae), Research Journal of Environmental and Earth Sciences, 4(7): 697-703

Parekh J., Jadeja D., and Chanda S., 2005, Efficacy of aqueous and methanol extracts of some medicinal plants for potential antibacterial activity, Turkish Journal of Biology, 29: 203-210

Polwiang S., 2015, The seasonal reproduction number of dengue fever: impacts of climate on transmission, Peer Journal, 3: e1069

https://doi.org/10.7717/peerj.1069

Pravin Y., SaranyaM., Sivakumar T., Mahendran S., Mohanraj R.S., and Dhanakkodi B., 2015, Larvicidal, pupicidal, ovicidal activity and GC-MS analysis of Spathodea campanulata P. Beauv. (Bignoniaceae) acetone leaf extract against the dengue vector mosquito Aedes aegypti (Diptera: Culicidae),International Journal of Current Research and Academic Review,3(5):92-111

Regnault-Roger C., Vincent C., and Arnasson T., 2012, Essential oils in insect control: low-risk products in a high-stakes world, Annual Review of Entomology, 57: 405-424

https://doi.org/10.1146/annurev-ento-120710-100554
PMid:21942843

Schmutterer H., 1990, Properties and potential of natural pesticides from the neem tree, Annual Review of Entomology,35: 271

https://doi.org/10.1146/annurev.en.35.010190.001415

Shaalam E., Canyon D.V., Younes M., Abdel-Wahab M., and Mansour A., 2005, A review of botanical phytochemicals with mosquitocidal potential, Environmental and International Health, 15: 1149-1166

Suman D.S., Wang Y., Bilgrami A.L., and Gaugler R., 2013, Ovicidal activity of three insect growth regulators against Aedes and Culex mosquitoes, Acta Tropica, 128: 103-109

https://doi.org/10.1016/j.actatropica.2013.06.025
PMid:23860181

Tabti N., and Abdellaoui-Hassaïne K., 2013, Comparative study of the effect of Bacillus thuringiensis on larval populations of Culex pipiens L. (Diptera-Culicidae) of the City of Tlemcen (Algeria), Open Journal of Ecology, 3(3):265-271

https://doi.org/10.4236/oje.2013.33030

WHO 1997, Chemical methods for the control of vectors and pests of public health importance, In: Chavasse DC, Yap HH, editors. Geneva: World Health Organization, WHO/CTD/WHOPES/1997.2

WHO 2005, Global Malaria Programme, Indoor residual spraying: use of indoor residual spraying for scaling up global malaria control and elimination, Geneva: World Health Organization, WHO/HTM/MAL.p.1112

Yugi J.O., Okeyo-Owour J.B., Were-Kogogo P., Luvaha G.M., Okwiri L.O., Rono T.M., and Vulule M.J., 2015a, Effective Dose of Crude Ethanol and Aqueous Extracts of Phytolacca dodecandra (L’ Herit) on Anopheles gambiae (Diptera: Culicidae) Larvae, Journal of Mosquito Research, 5(10): 1- 6

Yugi J.O., Okeyo-Owour J.B., Atieli F., Amito R., and Vulule J.M., 2014, Knockdown effect of crude ethanol extracts of Phytolacca dodecandra on Anopheles gambiae adults,Journal of Mosquito Research, 4 (18): 1-7

Yugi J.O., Okeyo-Owuor J.B., and Omondi D.O., 2016, Adulticidal effect of crude ethanol extract of Phytolacca dodecandra on Anopheles gambiae, Journal of Mosquito Research, 6(1): 1-5

https://doi.org/10.5376/jmr.2016.06.0001

Yugi J.O., Okeyo-Owuor J.B., Auma C.A., Juma J.I., and Vulule J.M., 2015b, Larviciding potency of water and ethanol extracts of Phytolacca dodecandra (L’ Herit) on Anopheles gambiae (Diptera: Culicidae), Journal of Mosquito Research, 5(2): 1- 6

https://doi.org/10.5376/jmr.2015.05.0002
