Research Report

Cytotaxonomic Examination for Identification of Anopheles culicifacies Sibling Species in Central India

Varun Tyagi1 , Ajay K. Sharma1 , Ruchi Yadav1 , D. Sukumaran1 , Agrawal O.P.2 , Vijay Veer3
1. Vector Management Division, Defence Research & Development Establishment, Gwalior-474002, India
2. School of Studies in Zoology, Jiwaji University, Gwalior, Madhya Pradesh-474002, India
3. Defence Research Laboratory, Tezpur, Assam- 784001, India
Author    Correspondence author
Journal of Mosquito Research, 2015, Vol. 5, No. 20   doi: 10.5376/jmr.2015.05.0020
Received: 22 Sep., 2015    Accepted: 03 Nov., 2015    Published: 21 Nov., 2015
© 2015 BioPublisher Publishing Platform
This is an open access article published under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
Preferred citation for this article:
Tyagi V., Sharma A.K., Yadav R., Sukumaran D. Agrawal O.P. and Veer V., 2015, Cytotaxonomic Examination for Identification of Anopheles culicifacies Sibling Species in Central India, Journal of Mosquito Research, 5(20): 1-7 (doi: 10.5376/jmr.2015.05.0020)

Malaria is one of the major public health problems in tropical countries including India. The Madhya Pradesh situated in central part of India and its 8% of the total population contributes about 30% of total malaria cases, 60% of total falciparum cases and 50% of malaria deaths in the country. The major malaria vector in this state is Anopheles culicifacies. The large numbers of cases of malaria in this area are largely due to cessation of vector control activities and deterioration of health services. The vector control mainly relies on the proper identification and distribution of the vector species exists in a particular area. The Anopheles culicifacies is a complex of five morphologically indistinguishable species A, B, C, D and E. Hence the present study was designed to identify and see the distribution of Anopheles culicifacies species in certain districts of Madhya Pradesh. The An. culicifacies mosquitoes were collected from different parts of Madhya Pradesh. The collected mosquitoes were subjected to polytene chromosome preparation for viewing the difference in chromosomal patterns of An. culicifacies sibling species. Sibling species C of An. culicifacies was identified from Hoshangabad (Dhadav and Padav villages) and species D of An. culicifacies was identified from Narsinghpur (Chinki, Bhalpani, Sherpipariya and Gotegaon villages) and Khandwa (Chighdhalia and Narnada Nagar villages).

Anopheles culicifacies; Sibling species; Malaria; Polytene chromosome; Central India

Madhya Pradesh is situated in the central part of India with an area of 308 thousand km2 of which forest covers 76,429 km2 (about 25% of the total land area). According to an estimate made in 1997, 60, 35 million population of Madhya Pradesh (M.P.), accounting for 6% of the total population of India (1,028 million), contribute to 8.6% of the total malaria cases. Epidemiological indices of malaria in Madhya Pradesh revealed a very dismal picture of malaria. An international team of experts reported a very high incidence of malaria in pregnancy. In Madhya Pradesh (rural) 183,000-1.5 million per year contract malaria in pregnancy, and result in 73,000-629,000 lost fetuses and 1,500 to 12,600 maternal deaths. Malaria is complex in Madhya Pradesh because of vast tracts of forest and high percentage of tribal settlement (20% of state population) (Singh et al., 2004). The magnitude of the problem can be accessed from an estimate made in 1987,  that 54 million individuals of various ethnic origins residing in forested areas of India and accounting for 8% of the total population contributed 30% of total malaria cases, 60% of total falciparum cases and 50% of malaria deaths in the country (Sharma, 1996).
Anopheles culicifacies s.l. is widely distributed in India and has been recorded in all mainland zones including Kashmir and high elevations in the Himalayas (up to 3000 meters) except islands of Andaman & Nicobar and Lakshadweep (Nagpal and Sharma, 1995; Subbarao, 1998; Rao, 1984). It is the most important vector in plains of rural India contributing 60-70% of reported cases annually (Sharma, 1996). Success stories in malaria control during 1950-1960, and malaria resurgence in the 1970s deal primarily with the control of An. culicifacies s.l. Biology and genetics of An. culicifacies has been extensively studied in India (Sharma, 2006; Barik et al., 2009), and presently characterized to be a species complex with five informally designated species A, B, C, D and E. These five sibling species are spread across India with distinct biological characteristics and role in malaria transmission.
Cytogenetical techniques’ involving karyotyping of polytene chromosome was one of the earliest tools for the study of anopheline genetics. Anopheline females in the semi-gravid stage have the best polytene chromosomes in ovarian nurse cells (Coluzzi, 1968). Larvae at the IV instar stage have polytene chromosomes in salivary glands. For those anopheline species which do not have good ovarian polytenes, larval salivary chromosomes can be used (but salivary gland polytene chromosomes are not very good in most anophelines). The advantage with adult females is that ovaries can be removed and fixed in modified Carnoy’s fluid (1:3 glacial acetic acid: methanol) and can be used at any time. Another advantage is that the same female can be studied for other parameters such as host preference, presence of sporozoites/sporozoite antigen, susceptibility to insecticides. Hunt and Coetzee (1986) describe storing of field collected mosquitoes in liquid nitrogen for correlated cytogenetic, electrophoretic and morphological studies. The preparation of polytene chromosomes from adult females is not difficult. Polytene chromosomes are the result of repeated replication of chromosomes at interphase without nuclear division, the process being known as endomitosis. Chromatids after division remain attached, causing thickening of chromosomes which results in the appearance of long ribbon-like structures with dark and light horizontal portions representing band and interband regions respectively. The dark and light regions represent differential condensation of chromosomes. The banding pattern of each chromosome is specific in a given species; thus, each species differs from others in characteristic banding pattern. Any changes in the pattern can be easily detected. In the polytene chromosome complement, only euchromatic regions are seen and the heterochromatic portions of the chromosomes which are under-replicated are not seen. This information will be helpful in better understanding of sibling species complex occurring in these areas and also the patterns of disease prevalence. Such information may also be helpful in developing of keys for sibling species identification and also to develop newer approaches for their control strategies.
1 Result
An. culicifacies sibling species collected from different study sites i.e. Hoshangabad (Dhadav and Padav villages), Narsinghpur (Chinki, Bhalpani, Sherpipariya and Gotegaon villages) and Khandwa (Chighdhalia and Narmada Nagar villages) were processed for preparation of polytene chromosome. The ovaries of individual mosquito were processed for polytene chromosome examination and were identified using the paracentric inversion on the X-chromosome and chromosome arm 2.
X- Chromosome: Due to the presence of a very weak chromocenter, the X-chromosome is always seen isolated from the other autosomal arms in the complement (Figure 1); it is easily identified by its much smaller size. In sibling species A and D, 1 large dark band occur near centromere and 4 large dark band occur in the middle of X- chromosome are also important features of X+a+b (X-chromosome) (Figure 2) whereas in sibling species B and C of An. culicifacies, 1 large dark band far from centromere and a few light bands occurs in a small puff are important features of Xab (X- chromosome) (Figure 3). For identification of An. culicifacies sibling species based on X+a+b (X-chromosome) character definitive cytospecies identification was not possible because sibling species A or D have same patterns of X- chromosome and similarly sibling species B or C also have same patterns of Xab (X- chromosome).

Figure 1 X chromosome


Figure 2 Chromosome Xa+b+


Figure 3 Chromosome Xab


Chromosome 2: Chromosome 2 is the longest autosomal arm (Figure 4). On the basis of the banding pattern on chromosome arm-2, sibling species C of An. culicifacies was identified from Hoshangabad (Dhadav and Padav villages). The diagnostic inversion genotypes for sibling species C was Xab; 2+ g1h1(Figure 5) whereas other districts samples of An. culicifacies on the basis of the banding pattern on chromosome arm-2, sibling species D of An. culicifacies was identified from Narsinghpur (Chinki, Bhalpani, Sherpipariya and Gotegaon villages) and Khandwa (Chighdhalia and Narnada Nagar villages). The diagnostic inversion genotypes for sibling species D was X+a+b; 2i1+h1 (Figure 6).


Figure 4 Chromosome No. 2


Figure 5 Sibling species C of An. culicifacies


Figure 6 Sibling species D of An. culicifacies


2 Discussion
Identification of Anopheles culicifacies sibling species using polytene chromosomes is very useful in the confirmation of various facts of evolutionary genetics and inter and intra specific chromosomal homologies. The preparation of a standard map is the first important step which acts as a reference for comparative studies. For example, the banding pattern specificity has been utilized in distinguishing different species of the same genus or subgenus and different populations of the same species (Dubinin and Tiniakov, 1945; Carson and Stalker, 1947). One of the essential requirements of cytogenetic investigation of mosquitoes is the preparation of "standard" polytene chromosome maps. Such type of polytene chromosomal mapping have been done in An. subpictus, An. vagus, An. hyrcanus nigerrimus and An. barbirostris, An. albimanus, An. aconitus, An. culicifacies, An. quadrimaculatus. The difference in the banding pattern and the presence of chromosomal polymorphism or inversion was observed among and within population of An. sundaicus might be useful as a diagnostic character in distinguishing cryptic species and chromosomal variability. In our study the collected mosquitoes were subjected to polytene chromosome preparation for viewing the difference in chromosomal patterns of An. culicifacies sibling species. Sibling species C of An. culicifacies was identified from Hoshangabad (Dhadav and Padav villages). The diagnostic inversion genotypes for sibling species C was Xab; 2+ g1h1 and species D of An. culicifacies was identified from Narsinghpur (Chinki, Bhalpani, Sherpipariya and Gotegaon villages) and Khandwa (Chighdhalia and Narnada Nagar villages), The diagnostic inversion genotypes for sibling species D was X+a+b; 2i1+h1. In other study the examination of polytene chromosomes of An. culicifacies from villages around Delhi and in the states of Gujarat and Madhya Pradesh, India, revealed the presence of two fixed inversions on chromosome arm 2. Species B was fixed for the g1 inversion in addition to a and b on the X-chromosome; thus, species B had Xab; 2g1 arrangement (Subbarao et al., 1983). In Gujarat and Madhya Pradesh, two chromosome 2 arrangements, g1+h1 and +g1h1, within Xab populations were seen. In a large sample examined, only four double-inversion heterozygotes (2g1+h1 /+g1h1) were observed; therefore, Xab; 2g1+h1 and Xab; 2+g1h1 were considered as two reproductively isolated populations. The new population with Xab; 2+ g1h1 was designated as species C (Subbarao et al., 1983). Similarly in a few populations in northern India, the i1 inversion on chromosome arm 2 was found polymorphic in species A, and it was found fixed in the southern Indian populations of An. culicifacies species A (Subbarao, 1984). The latter population with the X+a+b; 2i1 arrangement was found sympatric with species B. The evidence for reproductive isolation between species A (X+a+b; 2+g1+h1) and the population with the X+a+b; 2i1 h1 arrangement came from two locations (inversion i1 includes the g1 inversion region and the distal breakpoint is the same for both the inversions). In northern and central India, a deficiency of heterozygotes was found for i1 inversion in the X+a+b populations (Subbarao et al 1988; Vasantha et al., 1991) while in southern India a total absence of heterozygotes was found between species A (X+a+b; 2+g1+h1) and the population with the X+a+b; 2i1+h1 arrangement (Suguna et al., 1989). The X+a+b population with the new chromosome 2 arrangement 2i1+h1 were designated as species D. The explanation for the heterozygotes (+i1/ i1) of i1 inversion observed in northern India is that this inversion is floating in species A with varied frequencies in different populations and is fixed in species D (Vasantha et al., 1991). However it is evident from the literature that species E of An. culicifacies cannot be differentiated from species B because they have homosequential polytene chromosome arrangements. Species E requires mitotic chromosome examination of male progeny and/or vectorial potential needs to be established for distinction from species B (Kar et al., 1999). In the absence of either of these, identification of species E may not be accurate. Mitotic chromosome examination of male progeny and/or vectorial potential studies for sibling species B and E has not been done in present study due to availability of small number of samples. Cytogenetics involving the karyotyping of polytene chromosome was one of the earliest tools for the study of anopheline genetics. Among the disadvantages of this technique is that the polytene chromosome preparations must be made from ovarian tissues or brain cells of fourth instar larvae. This limits the samples to either adult blood fed female mosquitoes or late 4th instar larvae. In addition to the paucity of experienced personnel trained to read polytene chromosome preparations paracentric inversions are not abundant and the number of specimens that can be processed in a given time is also limited. Despite these limitations, this method remains integral for much of the contemporary work. Nevertheless, this standard photomap of polytene chromosome of An. culicifacies provides a reference point for further studies.
3 Materials and Methods
3.1 Collection sites
The adult Anopheline mosquito species were collected from different districts of Madhya Pradesh i.e., Hoshangabad (Dhadav and Padav villages), Narsinghpur (Chinki, Bhalpani, Sherpipariya and Gotegaon villages) and Khandwa (Chighdhalia and Narmada Nagar villages). These sites were selected on the basis as they represent the tribal belt along the streams of Narmada River and also show high incidence of malaria (Sharma, 2012; Singh, 2004; 2006; 2009). The locations and list of collection sites along with their longitude and latitude were given in Figure 7 and Table 1.


Table 1 Collection Sites with Longitude & Latitude


Figure 7 Map of Collection Sites


3.2 Collection of mosquitoes and larvae
The adult mosquito and larval collection were made during the transmission period i.e. February-March and August-September in the morning period between 0600 hrs to 0800 hrs using mouth aspirator and battery operated torch. Only the fed anophelines were captured at various collection sites including human dwellings, cattle sheds, mixed dwelling and random collection sites.Larval samples were collected from selected breeding sites in the different localities. Larvae were collected with the help of dippers (cap. 250 ml).  Ten dips per sq m of breeding habitat surface area were taken.
3.3 Morphological identification of field collected mosquitoes
All adult mosquitoes were brought to the laboratory and were identified using standard keys (Christopher, 1933; Wattal and Kalra, 1961; Das et al., 1990; Nagpal and Sharma, 1995). The prominent character that could be used to identify An. culicifacies from other Anopheles includes vein 3 mainly dark and inner costa interrupted other character apical pale band nearly equal to the pre-apical dark band. Each representative sample was pinned as a voucher specimen and kept in laboratory as a reference collection. From these collections the An. culicifacies female were separated and allowed for egg laying individually and the adult emerged from them are used for further standardization and identification of mosquito sibling species using allele specific polymerase chain reaction (AS-PCR) (Singh et al., 2004a; Goswami et al., 2006; Sharma et al., 2014).
3.4 The insect
Fully engorged female Anopheles culicifacies mosquitoes were collected from field and were used for morphological identification and other subsequent studies. Eggs from the above field caught mosquitoes were collected and transferred to enamel bowls containing approximately two liters of dechlorinated water for further development into larval stages. The developing larvae were provided with yeast tablets as the source of food. After completion of the four larval stages (Eggs→ 1st Instar Larvae→ 2nd Instar Larvae→ 3rd Instar Larvae→ 4th Instar Larvae→ Pupae), the developed pupae were collected and kept in breeding cages for the emergence into adults. For rearing purpose each population, the adult mosquitoes of the An. culicifacies sibling species were released in separate 75 x 60 x 60 mm cages. The adult mosquitoes were fed with 10% sucrose solution soaked in cotton pads. For blood meal, a rabbit was made available as a source of blood on alternate days. Mosquitoes were reared in the laboratory until adult stage at 27o+ 2oC, relative humidity 80 to 90% and the light / dark cycle was controlled by Dawn and Dusk System (Figure 8).

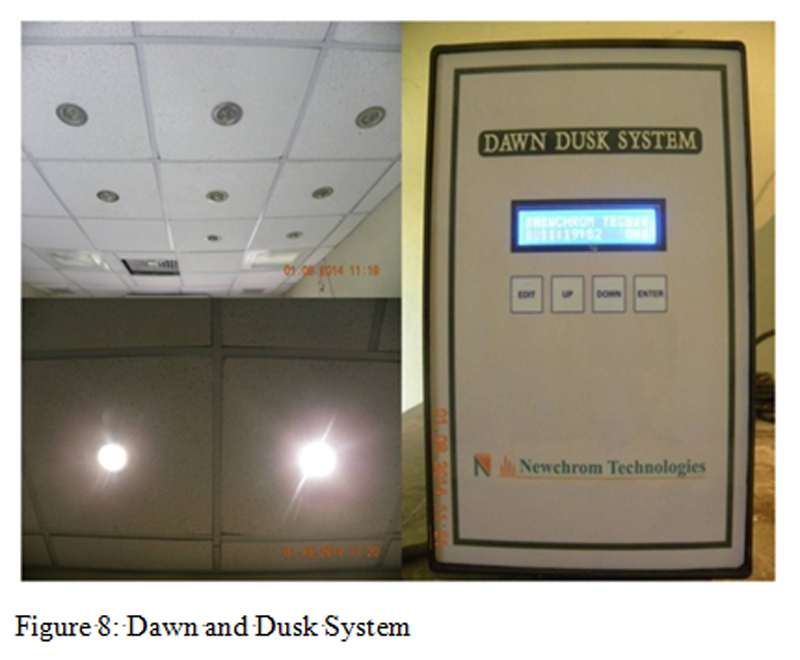

Figure 8 Dawn and Dusk System


3.5 Processing of material for polytene chromosome preparation
3.5.1 Processing of field collected materials
Separate out semi-gravid females from collected materials and Etherize with anesthetic ether. Remove ovaries with the help of fine forceps and place them in modified Cornoy’s fixative (Methanol- acetic acid 3:1). Keep ovaries at least for 36 hours in Cornoy’s fluid at room temperature (22oC-25oC) before processing for the preparation of chromosome, if not to be used immediately, store them in a refrigerator. For long term storing, change the fixative in the vials after 1-2 months.
3.5.2 Preparation of polytene chromosome (For viewing under phase contrast optics)
Soften ovaries (removed from fixative after keeping for specified time) in a drop of 50% propionic acid for a minute after this remove propionic acid and add a few drops of diluted 2% lacto-aceto-orcein (1 part stock stain in 3 parts 50 % propionic acid). Keep in the stain for 10 minutes and add a few drops of 50% propionic acid and drop a clean cover slip over the material slowly. Tap on top of cover slip with a blunt ended tapper. Place the slide between two pieces of filter paper and using a circular motion rub hard with thumb on the cover slip to flatten and place the slide on a slide warmer 60oC for a minute. For storing, place the slides in a horizontal coplin jar at the bottom with filter paper watted with 50% propionic acid.
Authors' Contributions
Tyagi V: The main author of the paper and have made contribution to conception and design and also the analysis of data; Sharma A.K: This author also contribution to conception and involved in the acquisition of data by using various methods Yadav R.: Helped in the general supervision of the research group; Sukumaran D: Involved in drafting of Manuscript; Agrawal O. P.: Revising the MS critically for important intellectual contents; Veer V.: Have given final approval of the version to be published.
The authors are thankful to Dr. Lokendra Singh, Director, Defence Research & Development Establishment, Gwalior, Madhya Pradesh, India for providing all necessary facility to conduct this research work. Sincere thanks also to the scientists and supportive staff of Vector Management Division for their kind cooperation for carrying out the above work.
Barik T.K., Sahu B., and Swain V.A., 2009, Review on Anophelesculicifacies: from bionomics to control with special reference to Indian subcontinent, Acta Tropica, 109: 87-97
Carson H.L., and Stalker H.D., 1947, Gene arrangements in natural populations of Drosophila robusta Sturtevant, Evolution, 1: 113-133
Christophers S.R., 1933, The fauna of British India including Ceylon and Burma, Diptera, Vol. IV. Family Culicidae, Tribe Anopheline, Taylor and Francis, Londo: 371-389
Coluzzi M., 1968, Cromosomi politenici delle cellule nutrici ovariche nel complesso gambiae del genera Anopheles, Parassitologia, 10: 179-84
Das B.P., Rajagopal R., and Akiyama J., 1990, Pictorial key to Indian Anopheline mosquitoes, Zool., 2: 132-162
Dubinin N.P., and Tiniakov G.G., 1945, Seasonal cycles and the concentration of inversions in populations of Drosophila funebris, Am. Nat., 79: 570-572
Goswami G., Singh O.P., Nanda N., Raghavendra K., Gakhar S.K., and Subbarao S.K., 2006, Identification of all members of the Anopheles culicifacies complex using allele-specific polymerase chain reaction assays, Am. J. Trop. Med. Hyg., 75: 454-460
Hunt R.H., and Coetzee M., 1986, Field sampling of Anopheles mosquitoes for correlated cytogenetic, electrophoretic and morphological studies, Bulletin of World Health Organisation,64: 897-900
Kar I., Subbarao S.K., Eapen A., Ravindran J., Satyanarayana T.S., Raghavendra K., Nanda N., and Sharma V.P., 1999, Evidence for a new malaria vector species, species E, within the Anopheles culicifaciesc omplex (Diptera: Culicidae), J. Med. Entomol., 36: 595-600
Nagpal B.N., and Sharma V.P., 1995, Indian Anophelines, Oxford &IBH Publishing Co. Pvt. Ltd., Mohan Primlani, N. Delhi: 1-416
Rao T.R., 1984, The Anophelines of India. Indian Council of Medical Research, New Delhi
Sharma A.K., Tyagi V., Singh S., Veer V., Agrawal O.P., and Sukumaran D., 2014, Distribution of Anopheles culicifacies and Detection of its Sibling Species E from Madhya Pradesh: Central India, J. Arth.-Borne Dis., 8(2): 186-196
Sharma S.K., Tyagi P.K., Pradhan K., Upadhyay A.K., Haque M.A., Joshi H., Biswas S., Nanda N., Anitha M., Adak T., Chitnis C.E., Chauhan V.S., and Subbarao, S.K., 2006, Epidemiology of malaria in the forest and plain ecotypes of Sundergarh district, Orissa, Tran. Roy. Soc. Trop. Med. Hyg, 100: 917-925
Sharma V.P., 2012, Battling malaria iceberg incorporating strategic reforms in achieving Millennium Development Goals & malaria elimination in India, Indian Journal of Medical Research, 136 (6): 907-925
Sharma V.P., 1996, Re-emergence of malaria in India, Indian Journal of Medical Research, 103: 26-45
Singh N., 2006, Tribal Malaria an Update on Changing Epidemiology, Proceedings of National symposium on Tribal Health, RMRCT, ICMR, Jabalpur, October 19-20: 47–54
Singh N., Das A.P., Varun B.M., and Kataria O.M., 2004, Tribal Malaria, ICMR Bulletin, 34: 1-10
Singh N., Dash A.P., and Thimasarn K., 2009, Fighting malaria in Madhya Pradesh (Central India): Are we losing the battle?, Malaria Journal 8: 93
Singh O.P., Goswami G., Nanda M.N., Raghavendra K., Chandra D., and Subbarao S.K., 2004, An allele-specific polymerase chain reaction assay for the differentiation of members of the Anopheles culicifaciescomplex, J Biosci, 29: 275-280
Subbarao S.K., 1998, Anopheline Species Complexes in South-East Asia, World Health Organization, Technical Publication, SEARO No.18, 82
Subbarao S.K., 1984, Biological species in malaria vectors of India, In Indi-UK Workshop on Malaria, Procedings of the workshop held at the ICMR, New Delhi, November 14-19, pp.77-83
Subbarao S.K., Vasantha K., Adak T., and Sharma V.P., 1983, Anopheles culicifacies complex: evidence for a new sibling species, species, Ann. Entomol. Soc. Am., 76: 985-986
Subbarao S.K., Vasantha K., and Sharma V.P., 1988, Response of Anopheles culicifacies species A and B to DDT and HCH in India: implications in malaria control, Med. Vet. Entomol., 2: 219-223
Suguna S.G., Tewari S.C., Mani T.R., Hiryan J., and Reuben R., 1989, A cytogenetic description of a new species of the Anopheles culicifacies species complex, Genetica,78:225–230
Vasantha K., Subbarao S.K., and Sharma V.P., 1991, Anopheles culicifacies complex: Population cytogenetic evidence for species D (Diptera: Culicidae), Ann. Entomol. Soc. Am., 84: 531–536
Wattal B.L., and Kalra N.L. 1961, Region wise keys to the female Indian anophelines. Bull Natl Soc. Ind. Mal. Mosq. Dis., 9: 85-138
